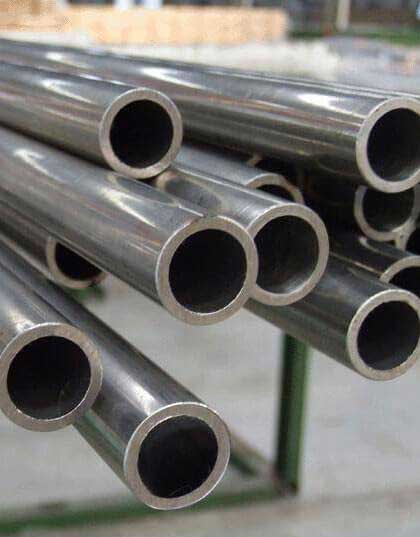

Greenline Pipe and Fitting is a leading manufacturer and exporter of the SS 410 tubes. We are known for maintaining quality as well as the quantity. We always use the best quality raw material to provide the best quality products. These pipes are available in different dimensions and sizes as per the client’s requirements.
The SS 409 pipes have excellent features such as it has resistance against the inorganic acids and also from the chlorides. This grade of the alloy has a high content of the chromium and the molybdenum contents which makes it extremely resistant to various types of corrosion. The SS 409 tubes are used in applications like hydraulic and different instrumentation applications and also used in the making of the heat exchangers in the industry of the chemical processing.
These SS 410 pipes are used in the areas of critical applications like construction, oil, and gas, petrochemical, in the extraction of natural gas, in the general industrial applications. The pipes are used to transfer the oil and gas from one place to another as it has the corrosion resistance hence there is very little chance of leakage. These pipes are also used in the off-shore drilling processing to dig out the minerals and gases and also used in the making of the valves and shafts.
These SS 409 M tubes are basically ferritic steel that possesses excellent mechanical properties as well as high-temperature corrosion resistance. It has chromium contents which made it most suitably used in the applications of the automobile and in the applications that need necessitate weldability. These SS 409 M pipes offer excellent corrosion resistance, oxidation resistance, pitting resistance, crevice resistance and also resistance to the stress corrosion. In this grade, it has the niobium, titanium, or the contents of both in the suitable composition which provides extra properties to the steel.
The documents which we offer are fumigation certificate, material test certificate, self-inspection certificate, packaging list, etc. which have all the required information about the stocks. The details like the gross weight, heat treatment, commercial invoice, etc. are also attached to the documents at the time of the delivery. The products are packed in wooden boxes.
Specifications :ASTM A213, A249, A269, A312, A358 / ASME SA213, SA249, SA269, SA312, SA358
Standard : ASTM, ASME and API
Dimension Standard : ANSI B36.19M, ANSI B36.10
Seamless Pipe Size : 1/2″ NB – 16″ NB
ERW Pipes Size : 1/2″ NB – 24″ NB
EFW Pipes Size : 6″ NB – 100″ NB
Pipes Outside Diameter : 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available
Seamless Tubes Size : 1/2" OD - 12" OD
Welded Tubes Size : 1/2" OD - 12" OD, Guage: 25 SWG - 10 SWG
Tubes Outside Diameter : 3.00 mm - 219.10 mm, 6.35 mm O.D to 114.3 mm O.D
Pipe Thickness : 0.3mm – 50 mm
Tubes Thickness : 0.40 mm - 12.70 mm, 0.8 mm to12.7 mm
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH120, SCH140, SCH160, XXS
Type : Seamless, Welded, ERW, EFW
Form : Round Pipes, Square Pipes, Rectangular Pipes
End : Plain End, Beveled End, Treaded
Grade | WERKSTOFF NR. | AISI | UNS | AFNOR | BS | JIS |
SS 409 | 1.4512 | 409 | S40900 | Z3CT12 | 409 S 19 | SUS 409 |
SS 409M | - | 409M | S40920 | - | HYFAB 3/12 | SUS 409M |
SS 410 | 1.4006 | 410 | S41000 | - | 410S21 | SUS410 |
Grades | C | Ni | Si | S | Mn | P | Cr | Ti |
SS 409 | 0.08 | 0.5 | 1.00 | 0.045 | 1.00 | 0.045 | 11.75 -10.5 | 0.75-6x C |
SS 409M | 0.03 | 1.00 | 0.5-1.5 | 10.80-12.50 | 1.5 max | 0.040 | 0.030 | 0.03 |
SS 410 | 0.08 – 0.15 | 0.0 – 0.75 | 0.0 – 1.00 | 0.0 – 0.02 | 0.0 – 1.50 | 0.0 – 0.04 | 11.50 – 13.50 | Balance |
Grade | Tensile Strength MPa (min) | Yield Strength 0.2% MPa(min) | Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
409 / 409M / 410 | 380 | 207 | 20 | 207 | 95 |
