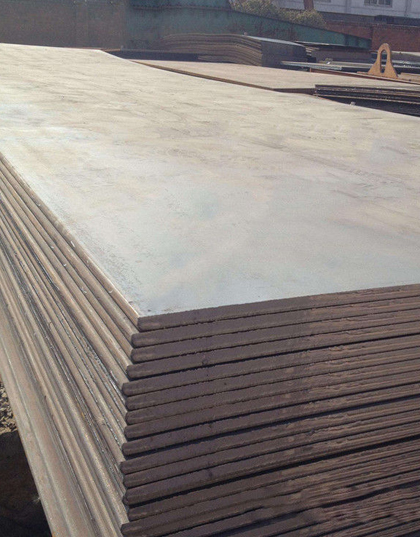

Greenline Pipe and Fitting is an esteemed manufacturer and exporter of S690QL, Weldox, and Domex Steel Plates. S690 QL is a structural steel grade of high yield manufactured in accordance with EN 10025:6:2004. Using the quench and tempering method, the material is heat treated and has strong bending and welding properties.
The ‘S’ in the grade S690QL denotes structural steel, ‘Q’ refers to the delivery status, for instance quenched and tempered. The term 'L' means that the average minimum effect energy values have been set at a temperature of -40 °C. Using S690QL can facilitate leaner structures with improved payload capacity and energy efficiency due to the high strength design of the materials. These steels are used in a variety of sectors including Heavy transportation, Machine building, Steel constructions, and Lifting equipment. These High Tensile Weldox, Domex, Structural Steel Plates have strong formability and are used to render lightweight vehicles in civil engineering and industrial machinery and in the automotive industry.
The advantages of using these high tensile Domex, Weldox structural steel plates and sheets are their robust construction, high ductility, and resistance to atmospheric corrosion.
The Weldox 700 have very good features such as outstanding cold bending properties, mechanical strength, chemical properties, strong weldability, formability, durability. It is also very simple to mount, easy to produce, etc. This is the primary reason why it is commonly used in sectors such as the oil and gas, petrochemical, chemical and fertilizer industry, power generation, nuclear, paper and pulp, textile, sugar, etc. industries.
The WELDOX 700 Tempered and Quenched Plate is used in penstocks, turbines and unfired scroll cases, shovels, power bucket parts, dipper sticks, transport equipment, etc. We conduct numerous tests such as micro test, macro test, flaring test, flattening test, hardness test, destructive test, non-destructive test, intergranular corrosion test, durability test, etc. to ensure that all our products are high-quality products We also store all or products in wooden crates so that during the shipping of the products to our customers no harm is caused to the products.
Item : Abrasion Resistant Plate
Plate Thickness : 10-50 mm, 8 - 65 mm
Width : Up to 2900 mm
Length : Up to 14630 mm
Heat Treatment : N, Q+T
Material : S690QL EN10137-2 EN10025-6:2004, A709-100, DILLIMAX 690, NAXTRA 70, WELDOX 700, E690, JFE HITEN 780LE, ALFORM 700
| C | Si | Mn | P | S | B | Cr | Cu | Mo |
| 0.20 | 0.80 | 1.70 | 0.020 | 0.010 | 0.005 | 1.50 | 0.50 | 0.70 |
| N | Nb* | Ni | Ti* | V* | Zr* | |||
| 0.015 | 0.06 | 2.0 | 0.05 | 0.12 | 0.15 |
| C | Si | Mn | P | S | Cu | Ni | Cr | Mo | B |
| 0.20 max % | 0.60 max % | 1.60 max % | 0.020 max % | 0.010 max % | 0.30 max % | 2.0 max % | 0.70 max % | 0.70 max % | 0.005 max % |
|
Grade
|
Al max
|
B max
|
C max
|
Fe max
|
Mn max
|
Mo max
|
P max
|
Si max
|
S max
|
|
Domex 700
|
0.015
|
0.0050
|
0.12
|
97
|
2.1
|
0.50
|
0.025
|
0.30
|
0.010
|
| Plate Thickness | Yield Strength | Tensile Strength | Elongation | Impact Strength |
| MM | ReH (MPa) | Rm (MPa) | A5 % Minimum | J, Minimum |
| 3 to 50 | 690 | 770 - 940 | 14 | 30 @ -40º C |
| > 50 to 100 | 650 | 760 - 930 | 14 | 30 @ -40º C |
| > 100 to 150 | 630 | 710 - 900 | 14 | 30 @ -40º C |
| Thickness mm | Yield strength Rp 0.2, min MPa | Tensile strength RmMPa | Elongation A5 min % | Typical hardness HBW |
| 4 - 53 | 700 | 780 - 930 | 14 | 260 - 310 |
| (53) - 100 | 650 | 780 - 930 | 14 | 260 - 310 |
| (100) - 160 | 650 | 710 - 900 | 14 | 240 - 290 |
|
Ultimate Tensile Strength
|
Yield strength Rp 0.2, min MPa
|
Elongation at Break
|
Impact
|
Bend radius (Minimum)
|
|
750 – 950 MPa
|
700 MPa
|
10 – 12 %
|
71 J/cm²; -20°C
|
1.0 t – t(3mm; internal bend radius, 90°)
|
