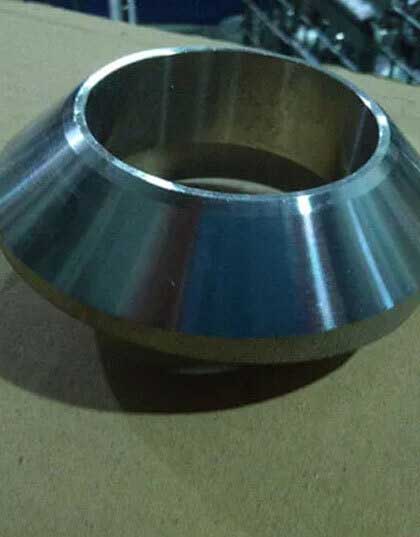

Greenline Pipe and Fitting is a leading company in the manufacture of Ti Grade 19 (Beta C) Olets. Other industrial products like wires, tubes, sheets, plate are also manufactured, supplied and exported by our company. We provide them in different sizes, shapes, and specifications.
Titanium has certain exceptional properties for the use in industrial applications. More amazing properties are possessed by the titanium-based alloys. Titanium Grade 19 (Beta C) is one among them. This alloy is heat treatable and also has a very amount of strength. Alongside, they also have good resistance to corrosion and stress at increased temperature ranges. It is a kind of metastable alloy that can be cold formed and strip produced.
This alloy also consists of a continuous oxide layer. The layer is formed due to the exposure to oxygen. It also has exceptionally great corrosion resistance towards reducing environments like of Hydrogen sulfide. This even has amazing fatigue resistance and therefore could be used in applications of high stress.
Many industries make use of this Titanium Alloy Grade 19 (Beta C) Olets. Industries or applications include aerospace industries, chemical processing industries, automotive industries, medical industries, marine industries, consumer applications, transportation, desalination, power generation, industrial applications, and gas and oil industries and so on.
Ti Grade 19 (Beta C) Olets is made up of a metastable beta titanium alloy. This alloy is known for its exceptional properties like amazing ductility in a solution treated annealed condition. It is also known for its elevated strength in its aged and solution treated condition. Great fatigue strength and low modulus of elasticity are other features of this alloy.
The alloy used can be heat treated to give a yield strength above 170 ksi. It also has a higher strength to weight ratio which makes it more appropriately chosen in comparison to stainless steel. It also has great corrosion resistance towards different oxidizing and reducing atmospheres.
Several tests are considered into action for quality check of Ti Grade 19 (Beta C) Olets. Tests include hardness tests, impact test, tensile strength test, radiography test, micro and macro test, metallurgic test, chemical analysis, corrosion resistance test, tests for weldability and temperature resistance, material testing, etc.
Specifications : ASTM B366 / ASME SB366
Dimension Standard : ASME / ANSI B16.11, MSS-SP-97, MSS-SP-79, JIS B2316, BS 3799 etc
Size : 1/8"-4" (DN6-DN100)
Thickness : SCH 5S, SCH 10S, SCH 40S, SCH 80S, SCH 120S
Class : 3000LBS, 6000LBS, 9000LBS
Types : Socket Weld (S/W) & Screwed (SCRD), Threadolet, Latrolet, Weldolet, Sockolet, Nippolet, Flexolet Threaded and Sweepolet, Flexolet butt-weld.
Connect Type : Welded, threaded, BW, SW
Origin : Indian Origin, European Origin, Japanese Origin
Testing and Documents : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports
Packing : Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests
STANDARD | WERKSTOFF NR. | UNS |
Grade 19 | - | R58640 |
Grade | C | N | O | H | Cr | Mo | Pd | V | Al | Fe | Zr |
Ti Grade 19 | 0.05 max | 0.03 max | 0.12 max | 0.02 max | 5.5 - 6.5 | 3.5 - 4.5 | 0.04 - 0.08 | 7.5 - 8.5 | 3.0 - 4.0 | 0.3 max | 3.5 - 4.5 |
Property | Minimum | Typical Value |
Tensile Strength MPa (ksi) | 1172 (170) | 1248 (181) |
0.2% Proof Stress MPa (ksi) | 1104 (160) | 1152 (167) |
Elongation Over 2 Inches (%) | 6 | 10 |
Reduction in area (%) | 19 | |
Elastic Modulus GPa (msi) | 103 (15) |
