ASTM A234 Alloy Steel Buttweld Pipe Elbow, A234 Alloy Steel WP5 Pipe Elbow, ASME SA234 WP9 Long Radius Elbow, a234 WP11 45, 90deg. Elbow, SA 234 WP22 Chromium Molybdenum Reducing Elbow, A234 CrMo WP91 Seamless Elbow Supplier, ASTM A234 SR Elbow Exporter in Mumbai India.

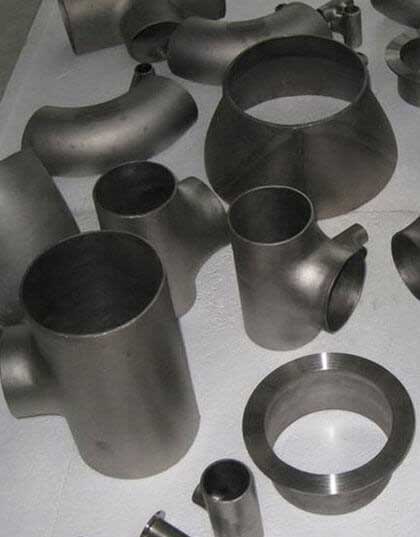

ASTM A234 Alloy Steel Buttweld Pipe Fittings Supplier
ASTM A234 Alloy Steel Buttweld Pipe Fittings, A234 Alloy Steel Pipe Fittings, ASME SA234 Chrome Moly Steel Elbow, ASTM A234 Chromium Molybdenum Seamless Pipe Fittings, ASME/ANSI B16.9 CrMo Tee, ASME SA234 Alloy Steel Cross, A234 Alloy Steel Welded Fittings Exporter, ASME SA 234 Alloy Steel Buttweld Fittings Supplier in Mumbai India.
About ASTM A234 Alloy Steel Buttweld Pipe Fittings
Greenline Pipe and Fitting is the prominent manufacturer of the ASTM A234 Alloy Steel Buttweld Pipe Fittings. We are supplying the superior quality of the buttweld pipe fittings. These are prominently utilized in the factories as well as in the industries. The international and national quality standards are followed in the development of the buttweld pipe fittings.
Table of Content
- What is ASTM A234 Alloy Steel Buttweld Pipe Fittings
- ASTM A234 Alloy Steel Buttweld Pipe Fittings Specification
- ASTM A234 Alloy Steel Buttweld Pipe Fittings Types
- A234 Alloy Steel Buttweld Pipe Fittings Equivalent Grades
- Alloy Steel Buttweld Pipe Fittings Chemical Composition
- ASTM A234 Alloy Steel Buttweld Pipe Fittings Mechanical Properties
- Other Types of A234 Alloy Steel Buttweld Pipe Fittings
- People also Search for ASTM A234 Alloy Steel Buttweld Pipe Fittings
- Application Industries of ASTM A234 Alloy Steel Buttweld Pipe Fittings
The ASTM A234 alloy steel Buttweld Pipe Fittings provides corrosion resistance against carbon dioxide or hydrogen sulfide in normal water. They also explain its resistance property to corrosion sourced by natural and distilled waters. The alloy Steel Buttweld Pipe Fittings gives less corrosion velocity in water up. In distilled water, the corrosion rate has increased against carbon dioxide and air in the ratio of 50-50 at temperature 160 degrees F. Furthermore, in oil well strainers these alloy Steel Buttweld Pipe Fittings can be utilized as they give corrosion resistance beside brine and hydrogen sulfide. Thus they give improved services in seawater.
ASTM A234 Alloy Steel Buttweld Pipe Fittings is good at prominently holding different properties. This is because of the ASTM steel alloy present in the pipe fittings. On the other way, the pipe fittings are having different properties like with the presence of carbon elements, the pipe fittings are holding corrosion resistance, pitting corrosion resistance, and crevice corrosion resistance.
Superior Quality of ASTM A234 Alloy Steel WP5 Buttweld Pipe Fittings, A234 Alloy Steel WP9 Pipe Bend, SA234 CrMo WP11 Stub End, Alloy Steel WP12 45, 90, 180° Elbow, A234 Cr-Mo WP22 Pipe End Cap, MSS SP-43 Chrome Moly A234 WP91 Reducers, A234 Alloy Steel Pipe Fittings Manufacturer in Mumbai India.
Also, there are different properties with different alloying elements in the buttweld pipe fittings. Some of the other properties which are there with the buttweld pipe fittings are great ductility, durability, high tensile strength, yielding strength, stability in the elevated temperatures, weldability, great formability, and others.
This is the reason that the ASTM A234 Alloy Steel Buttweld Pipe Fittings are used in different industries. Industries like Off-Shore Oil Drilling Companies, electronics, manufacturing, Aeronautical, Pharmaceutical Equipment, petroleum, and natural gas extraction industries, Power Generation, Chemical Equipment, Petrochemicals, and others are using the pipe fittings. The ASTM A234 Alloy Steel Buttweld Pipe Fittings is moving through different materials testing before it moves to the clients. The tests which are performed are hardness, hydrostatic, ultrasonic, positive material identification, and others. This is the way that the clients are ensured that they are provided with the good quality of the buttweld pipe fittings.
Specification of ASTM A234 Alloy Steel Buttweld Pipe Fittings
Specifications : ASTM A234 / ASME SA234
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Type : Seamless / Welded / Fabricated
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Schedule : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
ASTM A234 Alloy Steel Buttweld Pipe Fittings

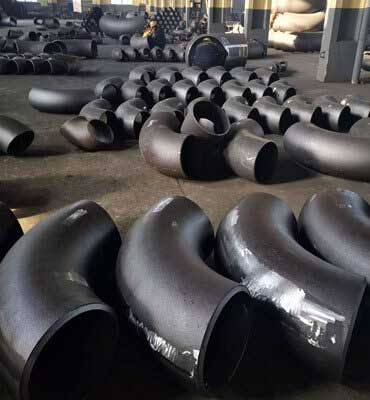

Elbow

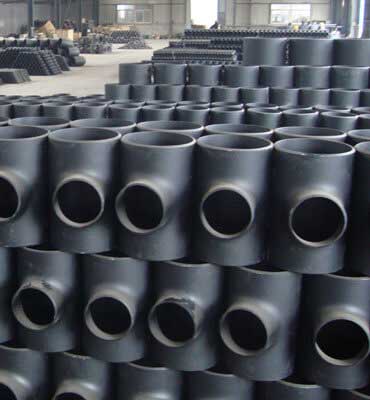

Tee

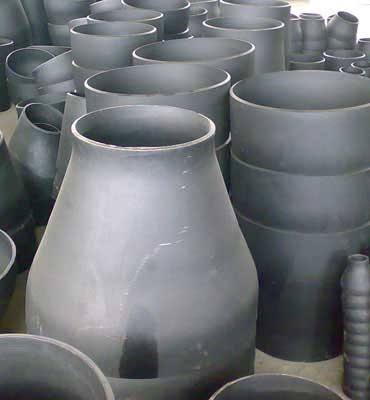

Reducers
Equivalent Grades of ASTM A234 Alloy Steel Buttweld Pipe Fittings
| STANDARD | WERKSTOFF NR. | UNS | TRADE NAME |
| Alloy Steel WP5 | 1.7362 | K41545 | 5Cr-1/2Mo |
| Alloy Steel WP9 | 1.7386 | S50400 | 9Cr-1Mo |
| Alloy Steel WP11 | 1.7338 | K11597 | 10CrMo5-5 |
| Alloy Steel WP12 | 1.7335 | K11562 | 13CrMo4-5 |
| Alloy Steel WP22 | 1.7380 | K21590 | 10CrMo9-10 |
| Alloy Steel WP91 | 1.4903 | K91560 | X10CrMoVNb9-1 |
ASTM A234 Alloy Steel Buttweld Pipe Fittings Chemical Composition
| Element | C | Mn | Si | S | P | Cr | Mo |
| Grade WP5 | ≤0.15 | ≤0.6 | ≤0.5 | ≤0.04 | ≤0.03 | 4-6 | 0.44-0.65 |
| Grade WP9 | ≤0.15 | ≤0.6 | 1.00 | ≤0.03 | ≤0.03 | 8-10 | 0.90-1.10 |
| Grade WP11 | 0.05-0.2 | 0.3-0.8 | 0.5-1 | ≤0.030 | ≤0.030 | 1-1.5 | 0.44-0.65 |
| Grade WP22 | 0.05-0.15 | 0.3-0.6 | ≤0.5 | ≤0.04 | ≤0.04 | 2-2.5 | 0.87-1.13 |
| Grade WP91 | 0.08-0.12 | 0.3-0.6 | 0.2-0.5 | ≤0.02 | ≤0.015 | 8-9.5 | 0.85-1.05 |
ASTM A234 Alloy Steel Buttweld Pipe Fittings Mechanical Properties
| Element | Tensile Strength, MPa | Yield Strength, MPa | Elongation, % |
| WP5 | 415 - 585 min | ≥205 min | ≥20 min |
| WP9 | 380 min | 585 min | ≥30 min |
| WP11 | 415-585 min | ≥205 min | ≥20 min |
| WP22 | 415-585 min | ≥205 min | ≥20 min |
| WP91 | ≥590 min | ≥415 min | ≥20 min |
Other Types of ASTM A234 Alloy Steel Buttweld Pipe Fittings
- Alloy Steel 1.7362 Buttweld Fittings
- Chromium Molybdenum 1.7386 Pipe Fittings
- Chromium Moly Steel 1.7338 Seamless Fittings
- SA234 Alloy Steel 1.7335 Welded Pipe Fittings
- Alloy Steel 1.7380 Pipe Elbow
- A234 Alloy Steel 1.4903 Reducers
- CrMo K41545 Buttweld Cap
- Alloy Steel S50400 Stub End
- Alloy Steel K11597 Short Radius Elbow
- Alloy Steel K11562 Tee
- Alloy Steel K21590 Cross
- Alloy Steel K91560 Pipe Bends
