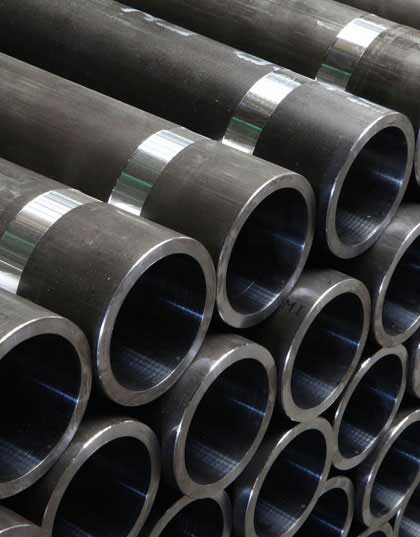

We Greenline Pipe and Fitting is busy in manufacturing, supplying & exporting and also keeping the product in stock the heavy industrial used product. We are providing the excellent quality of comprehensive ranges of API 5L Gr B PSL1/2 Pipe to the national and international clients. These pipes are only designed by using premium quality of alloying elements and as per the set product quality standards.
Catering to the needs and requirements of our esteem patrons we provide the same in different product designs that further vary differently in terms of sizes, wall thickness, lengths, and ends. Based upon the demands of our clients we too provide the same to the clients in custom-made specifications and standards.
The schedules in which our clients can acquire the API 5L Gr B PSL1/2 Law Pipe from us are ranging to SCH XXS and plus based upon the requirements. The ending of these pipes is the plain end, beveled end, etc. The coating in which we provide the same is including epoxy coating, 3LPE coating and color paint coating. Moreover, the conditions in which we deliver the same is rolled, thermo-mechanical rolled, normalizing rolled, thermo-mechanical formed, normalizing formed, normalized & tempered and tempered & quenched- BR, N, T, Q.
Many good properties like high tensile strength, good yielding strength, high toughness, longevity, good surface finishes, heat resistance, superiority in surface finishes, accuracy in the dimensions, anti-corrosive body, rugged constructions, general corrosion resistance, stress corrosion cracking resistance, good chemical property, good mechanical characteristics, etc are all making it an ideal selection for typical applications in different industries.
The applications wherein these API 5L Gr B PSL1/2 Pipe is found used is like pulp & paper industry, heat exchangers, condensers, pharmaceuticals, petrochemicals, power generations, specialty chemicals, food processing, oil & gas industry, etc.
Thorough quality tests are done on the designed ranges of API 5L Gr B PSL1/2 DSAW Pipe for checking its quality and working ability. Therefore the tests done on it are like positive material identification tests, toughness tests, macro tests, etc. We pack these pipes in bundles, wooden boxes, and plastic cloth wrapping with end caps, so on.
Sizes (Seamless) : 1/2" NB – 60" NB
Sizes (ERW) : 1/2" NB – 24" NB
Dimension Standard : ANSI B36.19M, ANSI B36.10
Sizes (SAW/LSAW): 16" NB – 100" NB
Thickness : 0.3mm – 50 mm.
Wall Thickness available : Schedule 20 – Schedule XXS (heavier on request) up to 250 mm thk
Type : LSAW / DSAW / SAW / HSAW / ERW / HFW / SSAW Pipes
| API 5l Grade B Pipe Sizes | Nominal Pipe Size 1/2" to 48 " O.D. Wall Thickness – Schedule 10 through 160, STD, XS, XXS. |
|---|---|
| API 5l Grade B Seamless Pipe | B (L245) – X42 (L290) – X52N (L360) – X60 (L415) – X65 (L450) DIMENSION: FROM 1/4” UP TO 24” |
| API 5l Grade B Welded Pipe | B (L245) – X42 (L290) – X52N (L360) – X60 (L415) – X65 (L450) – X70 (L485) – X80 (L555) DIMENSION: FROM 1/2” UP TO 60” |
| Weld Alternatives: | ERW, HF, DSAW/SAWL, SMLS, HSAW |
| API 5l Grade B Pipe Product Specification Level (PSL) | API 5L Grade B X42 PSL 2 API 5L Grade B X42 PSL 1 |
| OD Size Range: | ERW: 0.375" through 30" SMLS: 0.840" through 26" |
| Wall Thickness API 5l Grade B Pipe : | ERW: 0.120" through 1.000" HF: 0.120" through 1.000" DSAW/SAWL: 0.250" through 6.000" SMLS: 0.250" through 2.500" HSAW: 0.250" through 1.000" |
| Lengths: | Single Random Double Random Custom (up to 300′) |
| PSL1 | PSL2 | |||||||
| Grade | C (Max.) | Mn(Max.) | P(Max.) | S(Max.) | C (Max.) | Mn(Max.) | P(Max.) | S(Max.) |
| A | 0.22 | 0.90 | 0.03 | 0.03 | 0.22 | 1.20 | 0.025 | 0.015 |
| B | 0.26 | 1.20 | 0.03 | 0.03 | 0.22 | 1.30 | 0.025 | 0.015 |
| X42 | 0.26 | 1.30 | 0.03 | 0.03 | 0.22 | 1.40 | 0.025 | 0.015 |
| X46 | 0.26 | 1.40 | 0.03 | 0.03 | 0.22 | 1.40 | 0.025 | 0.015 |
| X52 | 0.26 | 1.40 | 0.03 | 0.03 | 0.22 | 1.40 | 0.025 | 0.015 |
| X56 | 0.26 | 1.40 | 0.03 | 0.03 | 0.22 | 1.40 | 0.025 | 0.015 |
| X60 | 0.26 | 1.40 | 0.03 | 0.03 | 0.22 | 1.45 | 0.025 | 0.015 |
| X65 | 0.26 | 1.45 | 0.03 | 0.03 | 0.22 | 1.65 | 0.025 | 0.015 |
| X70 | 0.26 | 1.65 | 0.03 | 0.03 | 0.22 | 1.85 | 0.025 | 0.015 |
| Mechanical Properties PSL 1 | |||||
| Grade | Yield Strength(Min.) | Tensile Strength(Min.) | Elongation | ||
| Ksi | MPa | Ksi | MPa | E=1944 A 0.2 /U 0.9 | |
| B | 35 | 241 | 60 | 414 | |
| X42 | 42 | 290 | 60 | 414 | |
| X46 | 46 | 317 | 63 | 434 | |
| X52 | 52 | 359 | 66 | 455 | |
| X56 | 56 | 386 | 60 | 414 | |
| X60 | 60 | 414 | 63 | 434 | |
| X65 | 65 | 448 | 66 | 455 | |
| Mechanical Properties PSL 2 | |||||||||
| Grade | Yield Strength | Tensile Strength | Elongation | ||||||
| Min | Max | Min | Max | E=1944 A 0.2 / U 0.9 | |||||
| Ksi | MPa | Ksi | MPa | Ksi | MPa | Ksi | MPa | ||
| B | 35 | 241 | 65 | 448 | 60 | 414 | 110 | 758 | |
| X42 | 42 | 290 | 72 | 496 | 60 | 414 | 110 | 758 | |
| X46 | 46 | 317 | 76 | 524 | 63 | 434 | 110 | 758 | |
| X52 | 52 | 359 | 77 | 531 | 66 | 455 | 110 | 758 | |
| X56 | 56 | 386 | 79 | 544 | 71 | 490 | 110 | 758 | |
| X60 | 60 | 414 | 82 | 565 | 75 | 517 | 110 | 758 | |
| X65 | 65 | 448 | 87 | 600 | 77 | 531 | 110 | 758 | |
